The Inter-Sep
Key Benefits:
► Driven by shaft mounted drive
► There is no chain and sprocket
► The machine is totally enclosed to control fumes safety
► Can be use for many medias such as rendering hot oil, citrus pulp,
wastewater
► Sizes from 12" to 60" diameter, lengths for 24" to 144"
Features:

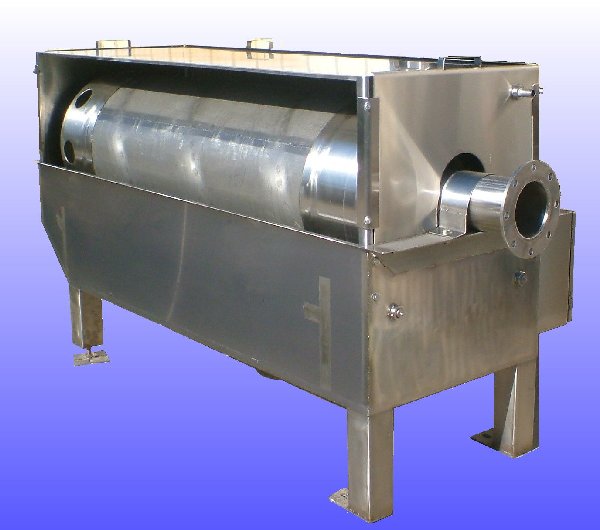

► Screen cylinder of heliacal-wound wedge
wire available in a range of diameters and lengths.
► Internally Fed Screens are individually
engineered and designed to meet client specifications with regard to
location of influent flow distribution chamber, height, width, gravity
or pumped flow, and need for access/inspection doors.
► Screen support construction of polymeric
trunions that are of shafted and of greasable design.
► The wedge wire screen with variable slot
opening provides solids removal based on client’s specific particle size
distribution.
► Each system is equipped with an integral
sump which can be oversized and/or conformed to meet design and
potential upset conditions.
► All stainless steel construction
including legs, pans, pumps and other extraneous parts with no hidden
add-on costs.
► Screening systems are offered with a
wide range of electrical control panel options, from basic to
sophisticated control circuitry.
► For Food Applications: USDA approved with a design that allows for the
entire screen to be CIPed.
► Screening systems are offered with a wide range of electrical control
panel options, from basic to sophisticated control circuitry.
| Technical Data | |||||
| Model No. | Openings in 0.005" increments |
Width W |
Height H |
Depth D |
Clean Water Flow in GPM |
| IRDS-4872 | 0.010 - 0.100 | 68" | 63" | 93" | 3,364 |
| IRDS-4884 | 0.010 - 0.100 | 68" | 63" | 105" | 3,798 |
| IRDS-4896 | 0.010 - 0.100 | 68" | 63" | 117" | 4,485 |
| IRDS-48120 | 0.010 - 0.100 | 68" | 63" | 141" | 5,607 |
| IRDS-48144 | 0.010 - 0.100 | 68" | 63" | 165" | 6,728 |
| IRDS-6072 | 0.010 - 0.100 | 80" | 75" | 93" | 4,250 |
| IRDS-6084 | 0.010 - 0.100 | 80" | 75" | 105" | 5,150 |
| IRDS-6096 | 0.010 - 0.100 | 80" | 75" | 117" | 6,010 |
| IRDS-60120 | 0.010 - 0.100 | 80" | 75" | 141" | 6,870 |
| IRDS-60144 | 0.010 - 0.100 | 80" | 75" | 165" | 8,139 |
Contact Us::
Telephone: 847-428-8222
FAX: 847-428-6855
Dontech Industries Inc.
76 Center Drive,
Gilberts, IL 60136
General Information or Sales:
DL Catton
Cell: 847-682-1776
Stephanie Richardson
Cell: 919-349-6041
Product Manager/Technical Support:
Carlos Pellot
Cell: 847-624-2476
Industries Served:
▪ Bakeries▪ Beet & Cane Sugar Refining
▪ Beverage Industry
▪ Breweries
▪ Citrus Processing
▪ Dairy Facilities
▪ Distilleries
▪ Food Processing
▪ Meat Processing
▪ Pharmaceutical Industry
▪ Pork Processing
▪ Poultry Processing
▪ Pulp & Paper
▪ Municipal Waste Water
Applications:
▪ Product Recovery▪ Pretreatment
▪ Biosolids Removal
▪ Biosolids Thickening
▪ Trash Removal
